Oxytherm+R Respirometer

High-resolution analysis of mitochondrial function, bioenergetics & other respirometry applications.

  • High-resolution for detection of small changes in O2 consumption.
  • Sealed chamber for liquid samples between 0.2 – 2.5ml.
  • High-sensitivity Clark-type dissolved oxygen electrode.
  • Simultaneous analysis of O2 flux with Ca2+, K+, TPP+ or pH using ISEs.
  • Real-time display of O2 consumption & ISE data throughout the experiment.
  • Temperature controlled electrode chamber between 3 – 40°C.
  • Easy additions of substrates/inhibitors/uncouplers to the sample.
  • Data from up to 8 individual Oxytherm+ R systems acquired simultaneously.
  • Windows® software for data acquisition, hardware control & data analysis.


The Oxytherm+ R respirometer is an ideal choice for high-resolution, high sensitivity, cost-effective analysis of mitochondrial function, bioenergetics and other respirometry applications. Real-time oxygen flux measurements can be combined with simultaneous data from ion-selective electrodes (ISEs) to provide measurements including pH, calcium (Ca2+) and potassium (K+) activity, or membrane potential (TPP+).

Oxytherm+ R has been used in a wide range of different research applications within biomedical, biochemical and biotechnology sciences including:

  • Mitochondrial dysfunction and disease.
  • Neurology including brain/neuronal injury and neurodegenerative diseases.
  • Oncology/cancer research.
  • Pharmaceuticals.
  • Aging.
  • Cardiology & cardiovascular disease research.
  • Endocrinology including diabetes research.
  • Hepatology.
  • Research into function and treatment of bacterial and viral infectious diseases.
  • Metabolomics.
  • Kinesiology and exercise physiology research.
  • Mycology.
  • Ecotoxicology.
  • Biophotovoltaics.
  • Nano materials.
  • Biorefining.
Click on the button below to view a selection of publications citing Hansatech Instruments high-resolution respirometry systems in biomedical research applications.

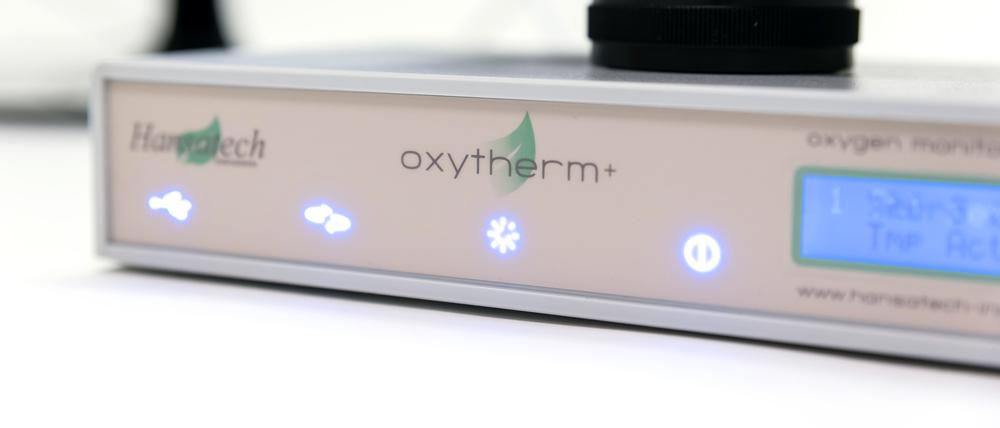

Oxytherm+ R control unit

Oxytherm+ R System for high-resolution measurements of mitochondrial function, bioenergetics and other respirometry applications

System configuration, calibration, and data acquisition are conducted exclusively through the accompanying OxyTrace+ software. Oxygen concentration and flux are plotted at user-defined acquisition intervals. Data acquisition is plotted in-software in real-time, allowing researchers to closely monitor the oxygen flux after the addition of substrates, inhibitors and uncouplers and, if necessary, react rapidly to modify the experimental process.

Additionally, the signal from a pH probe electrode, or other ion selective electrodes (ISEs), can be recorded. This allows researchers to closely monitor changes in oxygen flux alongside pH levels and other key indicators of mitochondrial function such as membrane potential (TPP+), Calcium (Ca2+) and potassium (K+) activity. The ISEs, and where necessary, a reference electrode, connect directly to the Oxytherm+ R providing a convenient, compact solution for any lab.

For complete flexibility, up to 8 individual instruments can be operated simultaneously as a multi-channel system. This allows researchers to perform synchronised assays on multiple sample types or under different conditions (such as pH or temperature).

Some users require hard-copy data due to rarity and importance of samples. An analogue output of the oxygen signal is provided which allows oxygen concentration data to be plotted to a chart recorder or other suitable data logging device with a 0 – 5V input.

Clark-type polarographic oxygen electrode

Clark-type polarographic oxygen electrode sensor.
The Hansatech Instruments oxygen electrode consists of a platinum cathode and silver anode set into an epoxy resin disc. The oxygen electrode is prepared for use by trapping a layer of 50% saturated KCl electrolyte solution beneath an oxygen-permeable PTFE membrane. A paper spacer placed beneath the membrane acts as a wick to provide a uniform layer of electrolyte between the anode and cathode. When a small voltage is applied across these electrodes, the current which flows is at first negligible and the platinum cathode becomes polarised with respect to the silver anode. As this potential is increased to 700 mV, oxygen is reduced at the platinum surface, initially to hydrogen peroxide (H2O2), so that the polarity tends to discharge as electrons are donated to oxygen (which acts as an electron acceptor). The current which then flows is stoichiometrically related to the oxygen consumed at the cathode.

Electrode chamber & temperature control

Oxytherm+ R System for high-resolution measurements of mitochondrial function, bioenergetics and other respirometry applications

The reaction vessel itself is constructed from precision-bore borosilicate glass tube with oxygen electrode forming the floor of the reaction vessel. It is contained within an insulated block which is fitted with a Peltier element and a large heat sink. This allows precise, effective temperature control of sample and sensor between 3°C – 40°C. Chamber temperature is configured in-software with actual chamber temperature indicated on an LCD display mounted on the front panel of the chamber itself.

The reaction vessel is sealed during the assay via the use of a gas-tight plunger (stopper) which prevents ingress of atmospheric oxygen. is fitted with a plunger with a central bore. The height of the plunger may be adjusted easily to suit liquid-phase sample volumes of between 0.2ml – 2.5ml. A narrow tube through the length of the plunger accommodates Hamilton-type syringe needles allowing additions of substrates, inhibitors and uncouplers directly into the sample. A window in the front of the chamber, and a user-operated viewing light, provides maximum visibility of the entire height of the reaction vessel allowing the plunger to be easily adjusted as necessary for the sample volume both before and during the assay.

Ion Selective Electrodes (ISEs)

We recommend using ISEs from World Precision Instruments (WPI). These ISEs have been tried and tested with Oxytherm+ R. The WPI ISEs connect directly to the Oxytherm+ R and can be mounted in the sample chamber for simultaneous, real-time measurement alongside the measurement of oxygen consumption.

The compatible ISEs are as follows:
